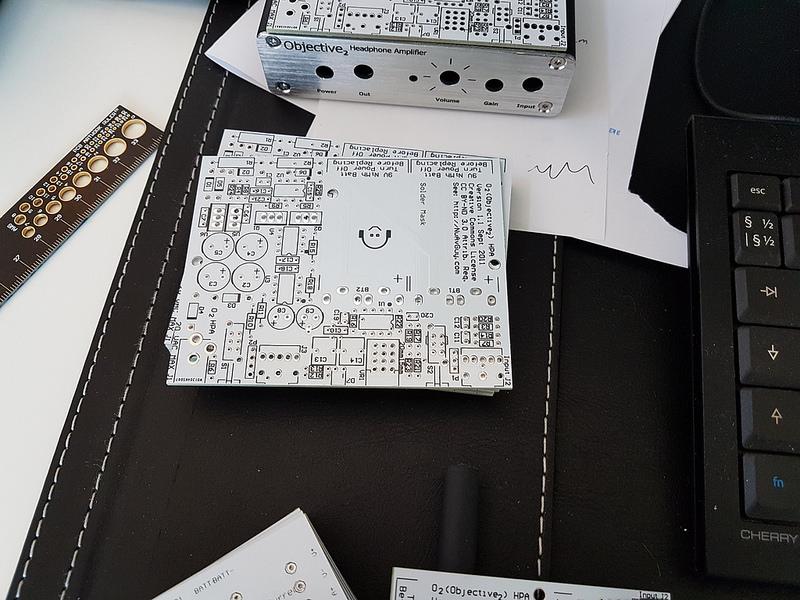

I've been getting my new hobby room ready, and I knew I needed some kind of stereo system in there. Preferably one that didn't annoy others in the house, so I ended up ordering PCBs from Nwavguy's gerber files. Yup, I'm gonna use headphones. :)

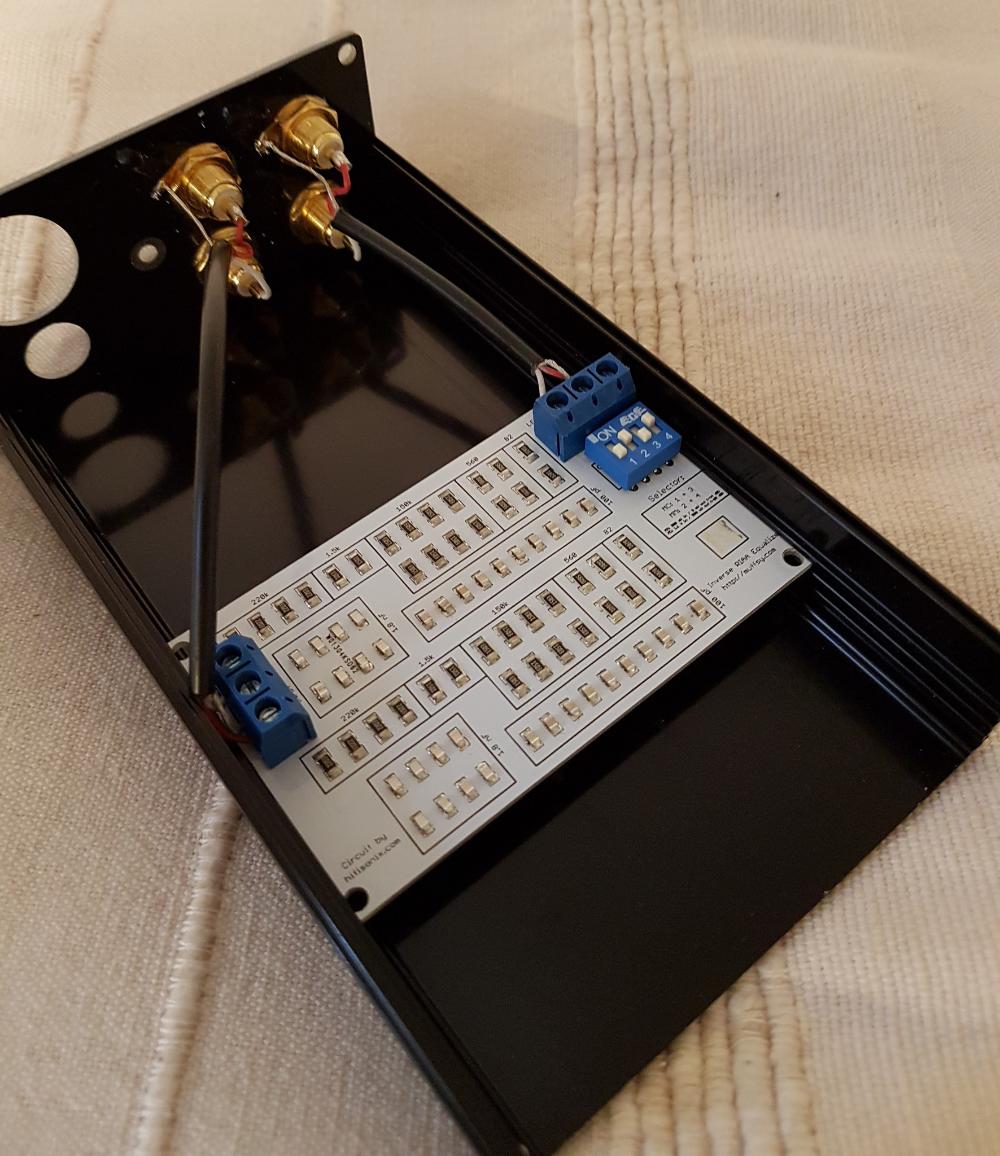

Here's the finished Inverse RIAA. I haven't done extensive testing yet, but it works as promised AND it measures exactly the same on both channels. I'm really happy with the result.

Get the gerbers for this project here: invRIAA.zip

This is my first venture into SMD components, so I'm going to have some fun with tools, solder paste, stencils and hot air. :)

Get the gerbers for this side project here: invRIAA.zip

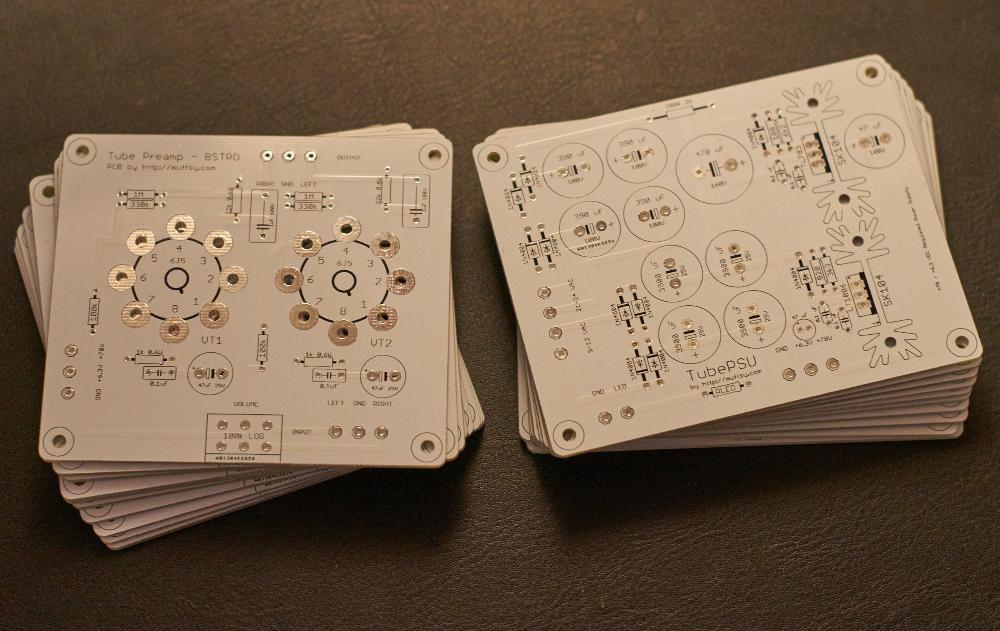

This project is freely available, and you can have the boards produced yourself. That's not for everyone though, so I've decided to sell the PCBs for the BSTRD on Tindie.
