Build the Muffsy Hifi Dual Power Supply

Please note that the Muffsy Hifi Dual Power Supply is delivered as a printed circuit board only. You need to buy the components listed in the bill of materials below.


A 15-18 volts AC wall adapter is needed to make this power supply work. Here is some more information about what you need to build the Muffsy Phono Preamp and Power supply.


You can also have a look at the schematics for the Muffsy products under the Modify It page.

Illustrations Explained

The picture below is a larger version of your printed circuit board. For each step, this will be used to show you which components you will be adding to the board.

PCB Overlay

This picture shows you where you are in the build process. It also shows what each component looks like, and it will contain special instructions or information.

Actual PCB with Comments

 Bill of Materials

These are the components needed to build the power supply.

There are lots of options available, alternatives from Mouser and Farnell are given where applicable:

Quantity  Component Mouser Alternatives Farnell Alternatives
 7Diodes, 1N4004 583-1N4004-T12T2303
2 Resistors, 0.25W Metal Film, 300 ohm 603-MFR-25FRF52-300R38K5327
 3Resistors, 0.25W Metal Film, 3300 ohm 603-MFR-25FRF52-3K338K5334
 2Resistors, 1W, 4.7 ohm 660-SPR1CT52R4R7J59T0018
 5Ceramic Capacitors, 100 nF 140-50V5-104Z-RC97K4396
 2Electrolytic Capacitors, 25V or higher, 10 uF 647-UVR1H100MDD1TD33K2335
 1Electrolytic Capacitor 35V or higher, 220 uF 
(Grid: 5.8 mm, Diameter: 10 mm)
647-UVR1H221MPD1TD09J5056
 4Electrolytic Capacitors, 50V, 2200 uF 
(Grid: 7.5 mm, Diameter: 16 mm)
647-UVK1H222MHD55K2543
 1Voltage Regulator, LM317T 511-LM317T58K8936
 1Voltage Regulator, LM337T 512-LM337T58K8937
 1Wall Adapter, 15-18V AC Suitable wall adaptersSuitable wall adapters
 1Male Power Jack, 2.1 mm 
 According to project requirements *)


 According to project requirements *)
 1Screw Terminal, DG301, 2 Positions 
(Grid: 5 mm)
710-69110271000204R6852
 1Screw Terminal, DG301, 3 Positions 
(Grid: 5 mm)
710-69110271000304R6853

*) It's hard to give a good suggestion of a power jack, as this will depend on your requirements. Please note that a power jack is included with the Muffsy Back Panel.


Before you move on, you might want to have a look at how to modify the Muffsy Hifi Dual Power Supply and its AUX Power, so you can get the component values you need.

Step 1: Solder the Diodes

There are seven 1N4004 diodes on the board. They have to be oriented correctly. The silver band on each diode matches the symbol on the printed circuit board.

Diode placment

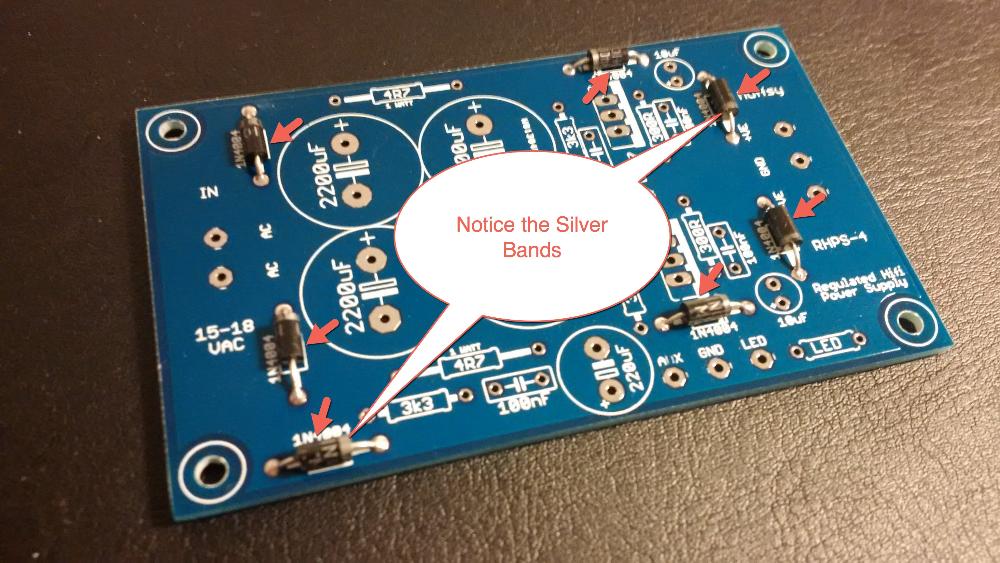

Diodes mounted on the board - Notice the orientation

Step 2: Solder the 0.25W Resistors

There are five of the 0.25W resistors, they can be oriented whichever way you want. It is a good idea to measure them before they are soldered in place.


If you need the exact same positive and negative output voltage, you should match the four resistors on the right side of the board. If you don't, the voltages will only differ by 20-30 mV maximum.

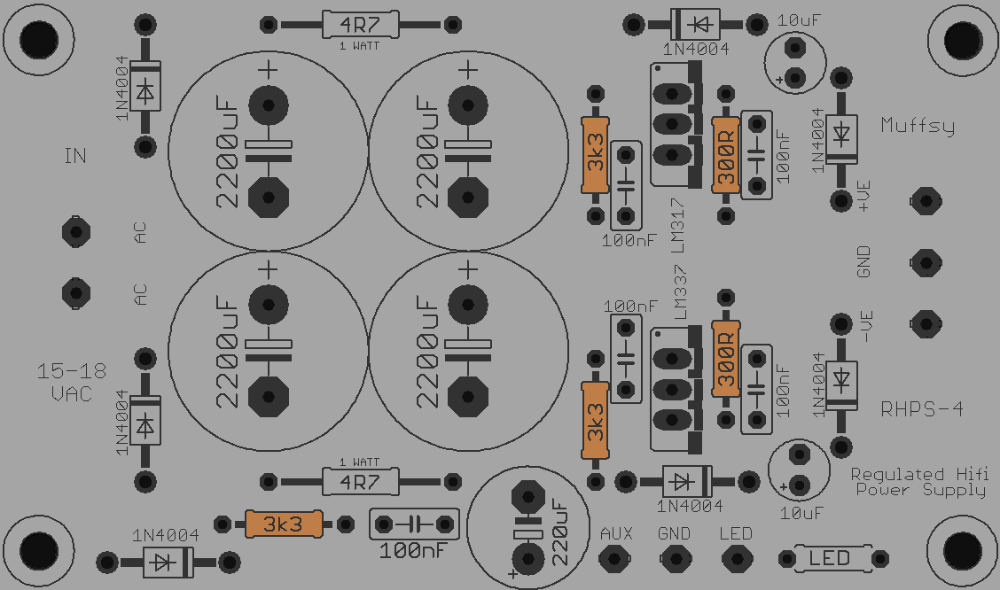

Placement of 0.25W resistors

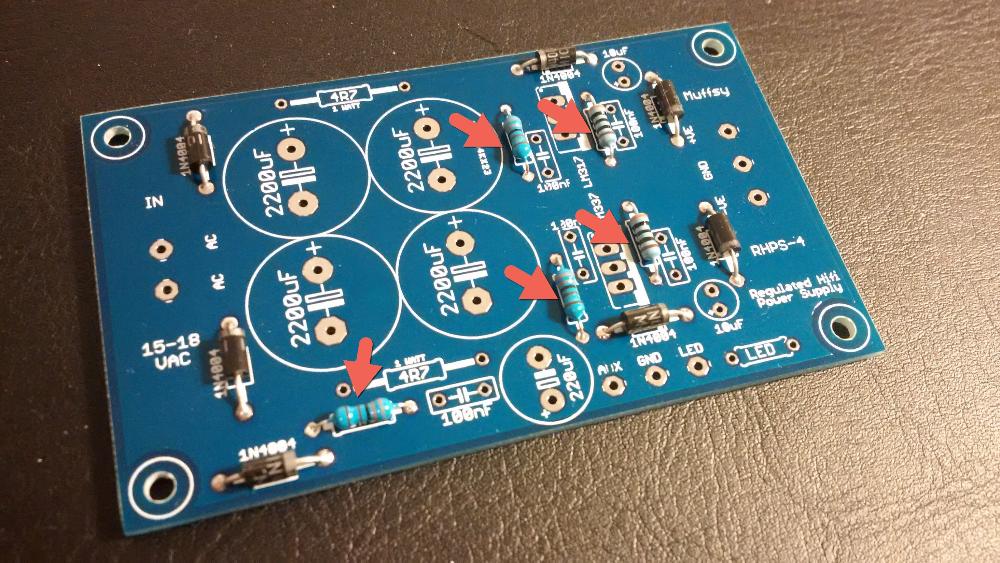

0.25W resistors soldered in place

Step 3: Solder 1W Resistors and Ceramic Capacitors

The two 1W resistors and the five ceramic capacitors can be mounted either way. I like to mount the capacitors so the text can be seen.

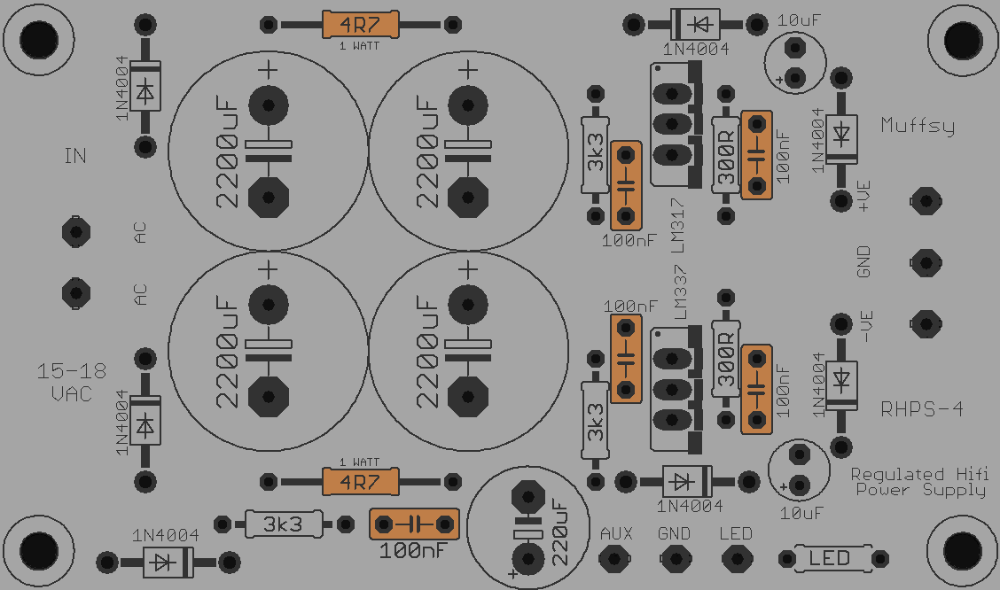

Placement of 1W resistors and ceramic capacitors

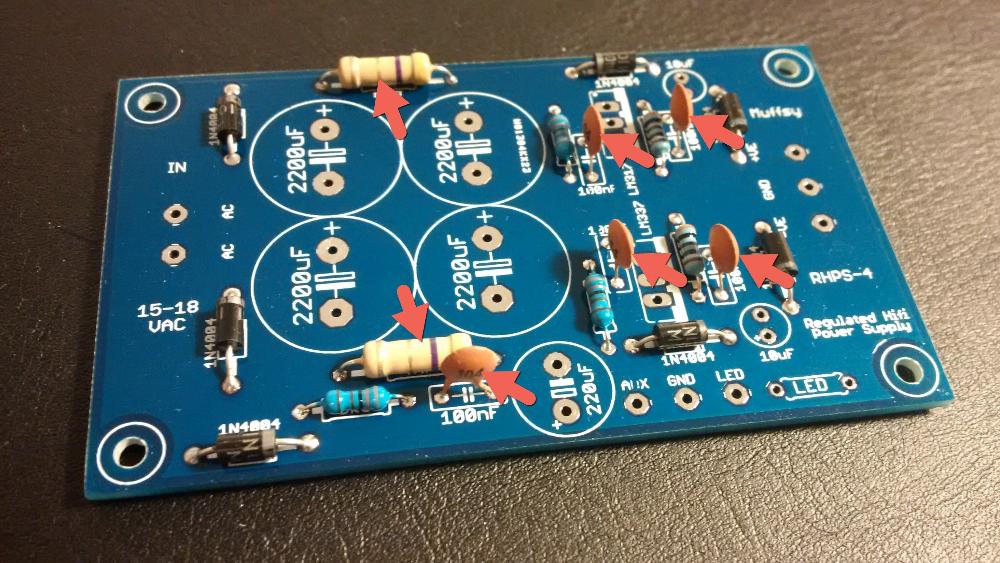

1W resistors and ceramic capacitors mounted on the board

Step 4: Solder 10 uF Electrolytic Capacitors

There are two of these small electrolytic capacitors. Make sure that the white band (negative) is pointing upwards when the board is oriented as on the pictures.

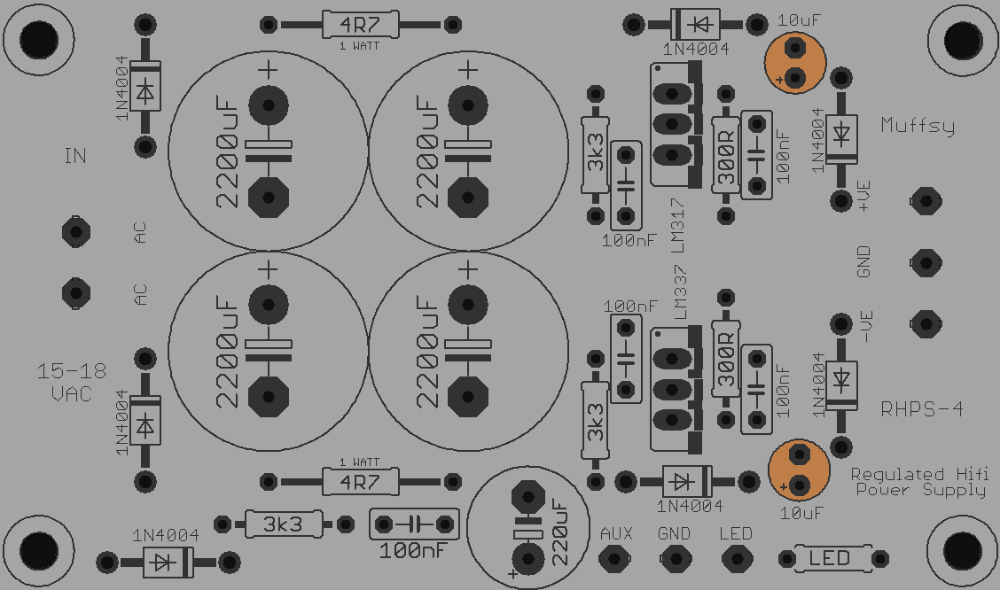

10 uF electrolytic capacitors

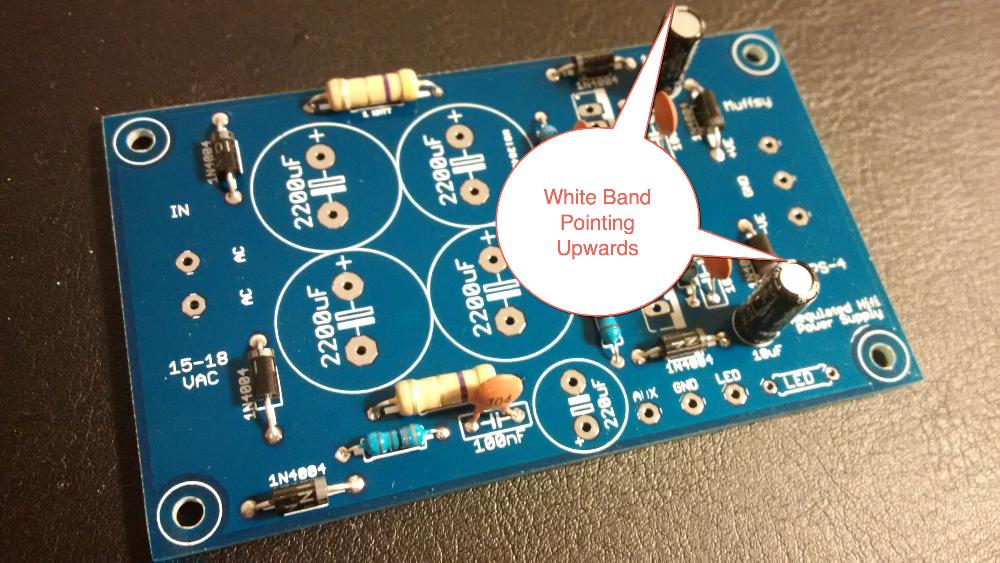

10 uF electrolytic capacitors - Notice the orientation

Step 5: Solder the Voltage Regulators

There are two voltage regulators. One positive and one negative. The positive is the uppermost one on the pictures, the negative is the lower one.


Make sure that the regulators are mounted the right way. The metal "backside" must point to the right, when the board is oriented as on the pictures below. If they are placed wrong, the power supply will not work at all.

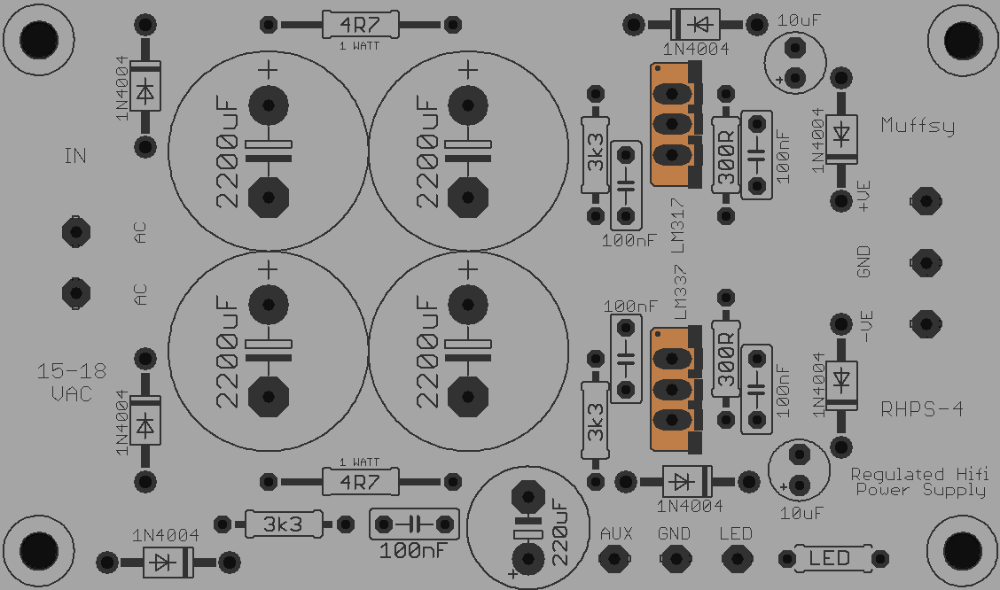

Voltage Regulators

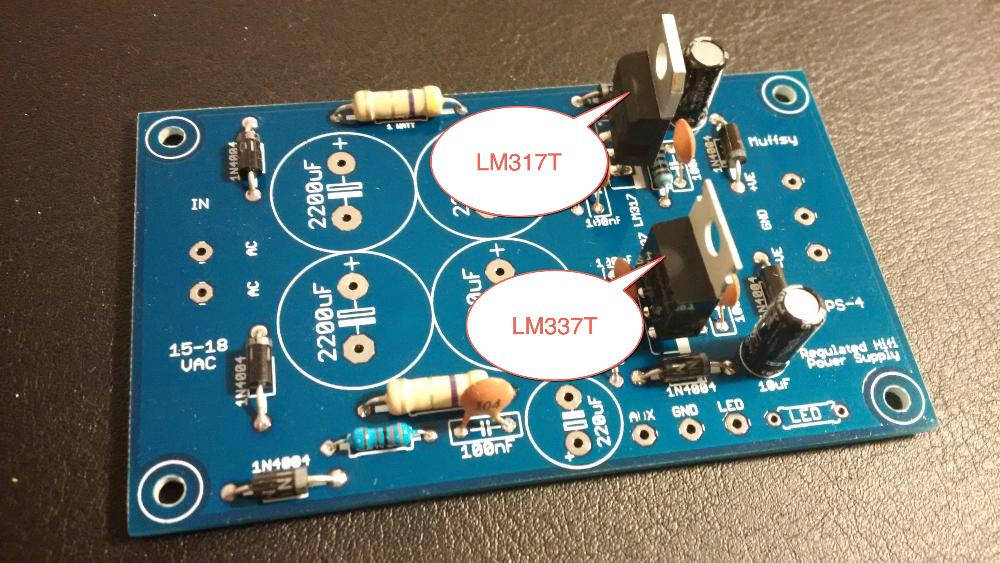

Voltage Regulators - Notice the component names and orientation

Step 6: Solder the 220 uF and 2200 uF Capacitors

The smaller 220 uF capacitor must be oriented with the white band pointing upwards. If you have decided to improve the voltage ripple, substitute this capacitor with the new one.


The four larger 2200 uF capacitors must have the white band pointing downwards.

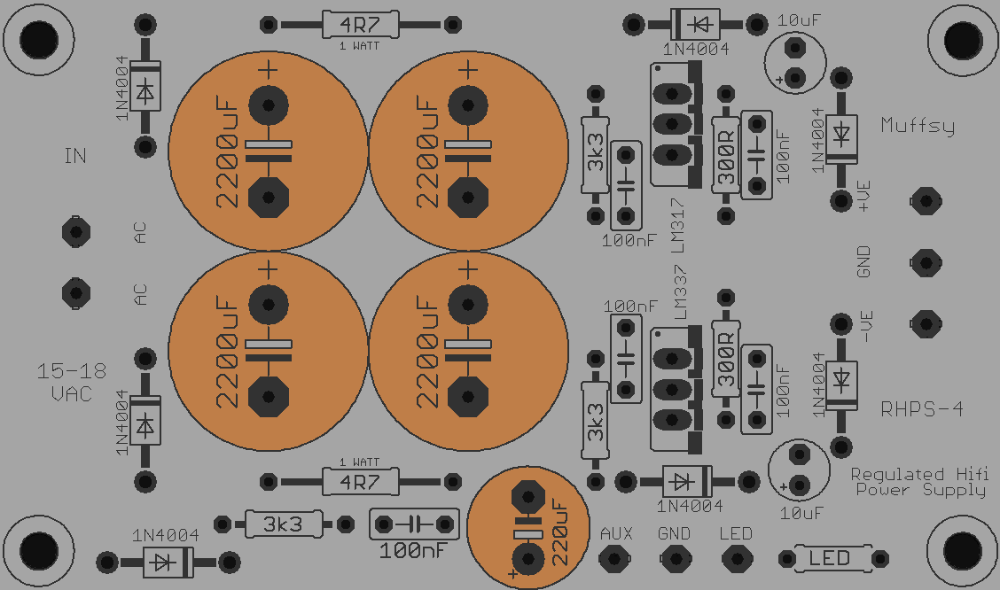

Placement of electrolytic capacitors

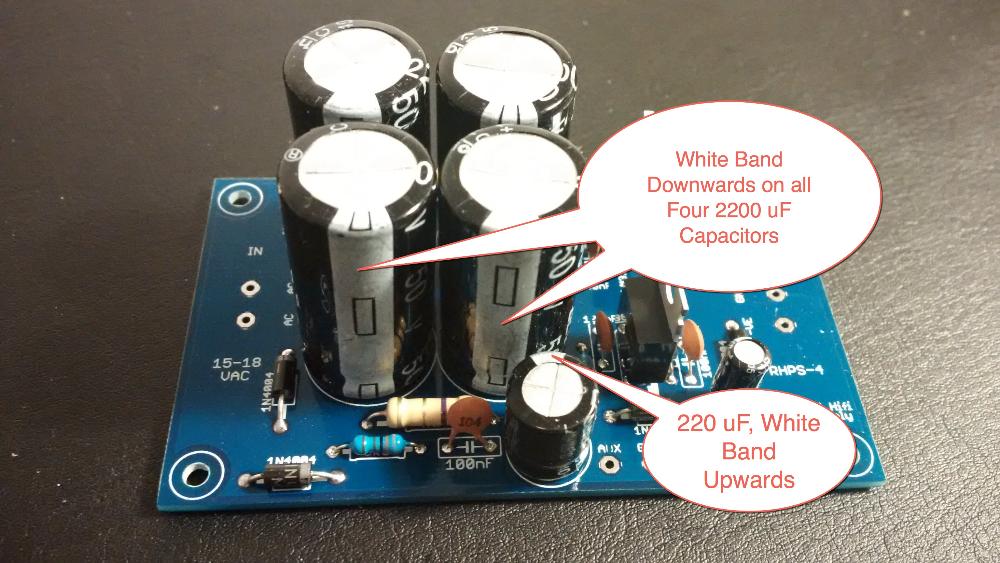

Electrolytic capacitors mounted - Notice the orientation

Step 7: Solder Screw Terminals

The last components to go on the board are the two screw terminals.


The screw terminal with two connections  is for the 15-18V AC input, from the wall adapter. The screw terminal with three holes is for the +/- 15V DC output and ground.


Orientation of the Screw Terminals

B0905 Cabinet: If you are using a B0905 cabinet, you really want the holes of the screw terminals pointing inwards. If you don't, you risk shorting the power cables against the wall of the cabinet.


If you have a lot of space in your cabinet, having the holes of the screw terminals pointing outwards from the board is normally the way to go.

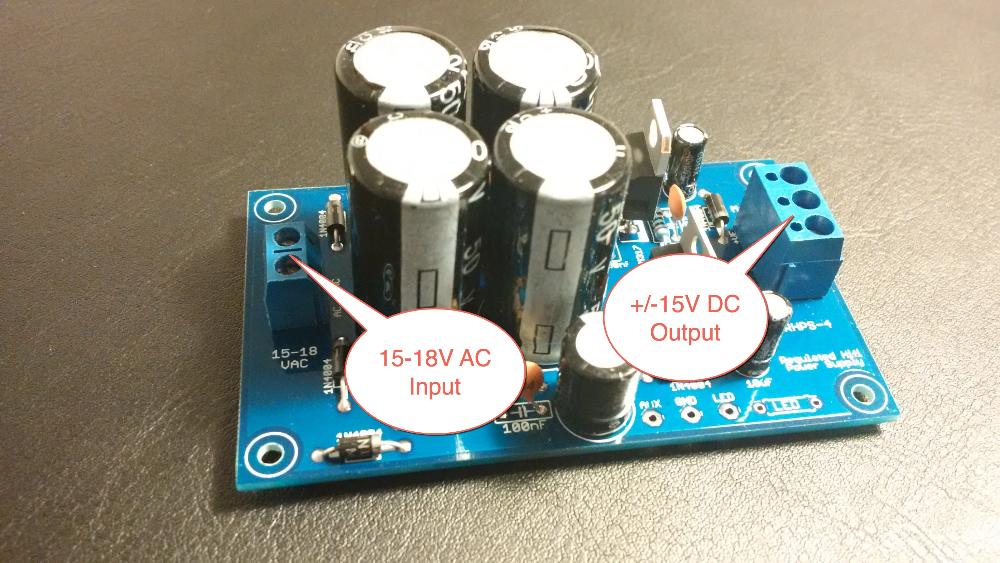

Screw terminals soldered on the board

Construction Complete
